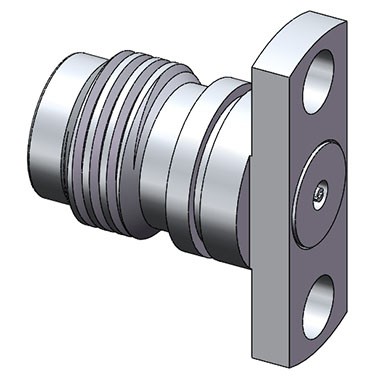

ANO 6212-3015-1
1.85mm Straight Female, 2 Hole .551'' Long Flange, Accept .009'' Pin Dia., Field Replaceable
Product Type:Connectors
Series:1.85mm
Series:1.85mm
Price:
Product Specifications
| Connector Series | 1.85mm |
|---|---|
| Termination Type | Field Replaceable Contact |
| Gender | Female |
| Body Style | Straight |
| Attachment Method | Field Replaceable |
| Max. Frequency | 65 GHz |
| Mounting Feature | 2 Hole Flange |
| Connection Method | Screw-on |
| Compliance RoHS | Yes |
| Polarity | Standard |
| Impedance | 50 Ohm |
| Contact Material | Beryllium Copper Alloy |
| Contact Finish | Gold |
| Body Material | Stainless Steel |
| Body Finish | Passivated |
| Dielectric Type | PEI |
| Temperature | −55℃ to +165℃ |
| Accept Pin For Socket | 0.009 inch |
| VSWR | 1.25 MAX. |
