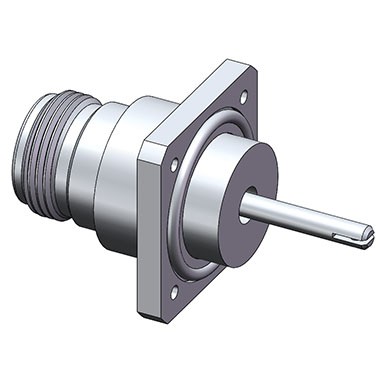

ANO 5112-3241
N Straight Female 4 Hole 1 inch SQ. Flange Receptacle Slotted Contact
Product Type:コネクタ
Series:N-Type
Series:N-Type
Price:
製品仕様
| Connector Series | N-Type |
|---|---|
| Termination Type | Terminal |
| Gender | Female |
| Body Style | Straight |
| Attachment Method | Field Replaceable |
| Max. Frequency | 11 GHz |
| Mounting Feature | 4 Hole Flange |
| Connection Method | Screw-on |
| Terminal Contact Type | Slotted Contact |
| Compliance RoHS | Yes |
| Polarity | Standard |
| Impedance | 50 Ohm |
| Contact Material | Beryllium Copper Alloy |
| Contact Finish | Silver |
| Body Material | Brass |
| Body Finish | Albaloy |
| Dielectric Type | PTFE |
| Temperature | -65℃ to +165 |
| VSWR | 1.15 MAX. AT DC-6 GHz |
