ANO 4712-3017

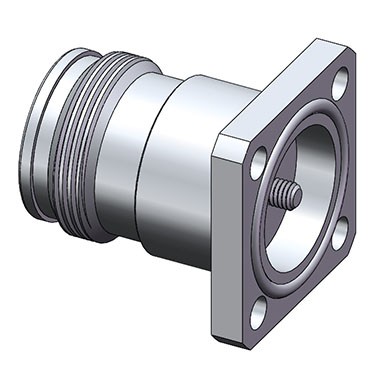

4.3-10 Straight Female, 4 Hole 1 Inch SQ. Flange Receptacle M3 Threaded
Product Type:Connectors
Series:4.3-10
Series:4.3-10
Price:
Product Specifications
| Connector Series | 4.3-10 |
|---|---|
| Termination Type | Field Replaceable Contact |
| Gender | Female |
| Body Style | Straight |
| Attachment Method | Field Replaceable |
| Max. Frequency | 6 GHz |
| Mounting Feature | 4 Hole Flange |
| Connection Method | Screw-on |
| Compliance RoHS | Yes |
| Polarity | Standard |
| Impedance | 50 Ohm |
| Contact Material | Beryllium Copper Alloy |
| Contact Finish | Silver |
| Body Material | Brass |
| Body Finish | Albaloy |
| Dielectric Type | PTFE |
| Temperature | -40°C to +125°C |
| Low PIM | Yes |
| VSWR | 1.20 MAX. |
