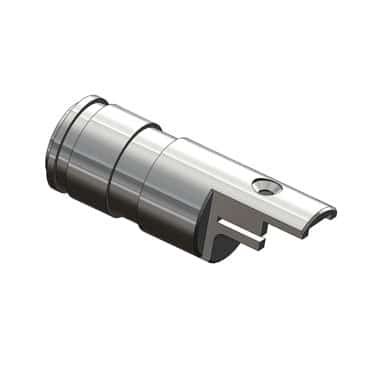

ANO 3311-4111
TNC Straight Male End Launch, Custom
Product Type:Connectors
Series:TNC
Series:TNC
Price:
Product Specifications
| Connector Series | TNC |
|---|---|
| Termination Type | PCB |
| Gender | Male |
| Body Style | Straight |
| Attachment Method | Solder |
| Max. Frequency | 11 GHz |
| Connection Method | Screw-on |
| PCB Type | End Launch |
| Compliance RoHS | Yes |
| Polarity | Standard |
| Impedance | 50 Ohm |
| Contact Material | Beryllium Copper Alloy |
| Contact Finish | Gold |
| Body Material | Brass |
| Body Finish | Nickel |
| Dielectric Type | PTFE |
| Temperature | -55°C to +125°C |
| VSWR | 1.30 MAX. |
