ANO 2912-3065

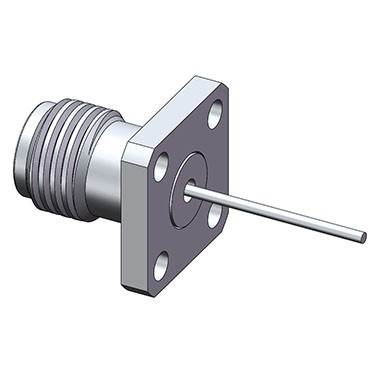

2.92mm Female, 4 Hole .374'' SQ. Flange Mount
Product Type:Connectors
Series:2.92mm
Series:2.92mm
Price:
Product Specifications
| Connector Series | 2.92mm |
|---|---|
| Termination Type | Terminal |
| Gender | Female |
| Body Style | Straight |
| Attachment Method | Solder |
| Max. Frequency | 40 GHz |
| Mounting Feature | 4 Hole Flange |
| Connection Method | Screw-on |
| Terminal Contact Type | Pin |
| Compliance RoHS | Yes |
| Polarity | Standard |
| Impedance | 50 Ohm |
| Contact Material | Beryllium Copper Alloy |
| Contact Finish | Gold |
| Body Material | Stainless Steel |
| Body Finish | Passivated |
| Dielectric Type | PEI |
| Temperature | -55°C to +125°C |
| VSWR | 1.10 TYP. AT DC-27 GHz; 1.15 TYP. AT 27-40 GHz |
