ANO 2612-1100

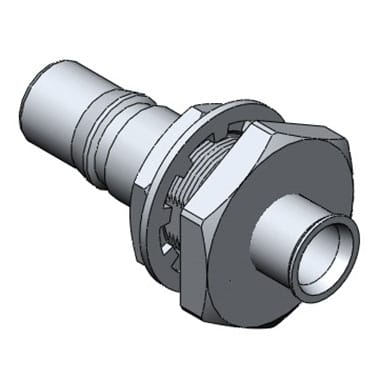

QMA Straight Female Bulkhead Solder For .141 Cable
Product Type:Connectors
Series:QMA
Series:QMA
Price:
Product Specifications
| Connector Series | QMA |
|---|---|
| Cable Type | HF141FEP, HF141FEP(W), RG402, SR141 AL/TP, SR141TP-LL, AFLEX-141, AFLEX-141AF, HF141, SR141 |
| Termination Type | Coaxial |
| Gender | Female |
| Body Style | Straight |
| Attachment Method | Solder |
| Max. Frequency | 18 GHz |
| Mounting Feature | Bulkhead – Rear Mount |
| Connection Method | Quick Lock |
| Compliance RoHS | Yes |
| Polarity | Standard |
| Impedance | 50 Ohm |
| Contact Material | Beryllium Copper Alloy |
| Contact Finish | Gold |
| Body Material | Brass |
| Body Finish | Albaloy |
| Dielectric Type | PTFE |
| Temperature | -55°C to +125°C |
| VSWR | 1.25 MAX. at DC-6 GHz |
