Connecting multiple cable assemblies can be time-consuming. In some cases, spatial constraints may also make the operation difficult or even prevent the use of tools such as torque wrenches.
Our H2306 Multipin Series provides an efficient solution to these challenges. Featuring a compact circular shell (size 23) with six inserts, it enables rapid, precise connection of 12 cable assemblies without a torque wrench and in minimal space.

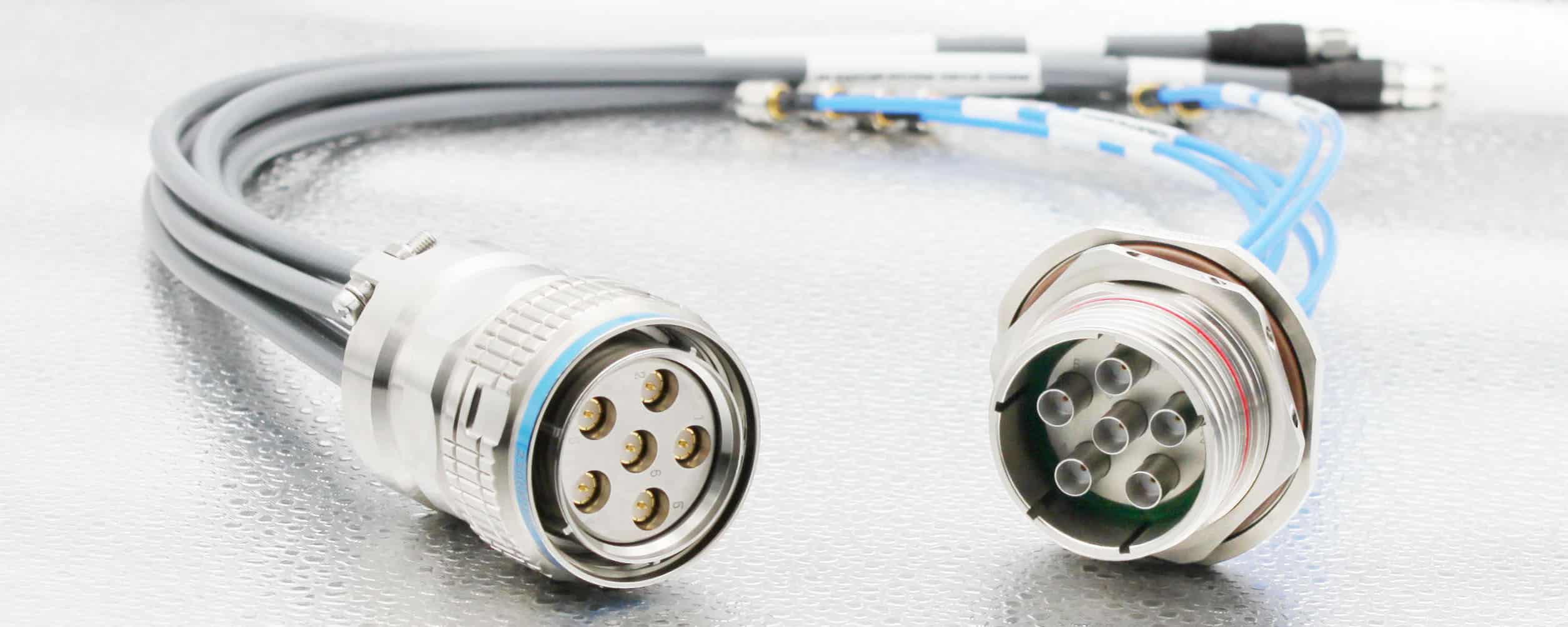

This 38999 Series 23-6 wire harness (Series 3) is designed for specialized outdoor applications requiring six-channel, high-frequency signal transmission.
It requires grounding and waterproofing, so the all-metal housing (316L stainless steel) and robust waterproof construction are used on both the outer and rear shells.
Furthermore, it requires high power and low loss, and therefore supports custom-designed PO-26 insert contacts (up to 26 GHz) and matched high-power, low-loss PLEX190 cables.
The PO-26 insert contacts are also compatible with other 38999 Series shell sizes and position/count combinations.
