ANO 9312-5038

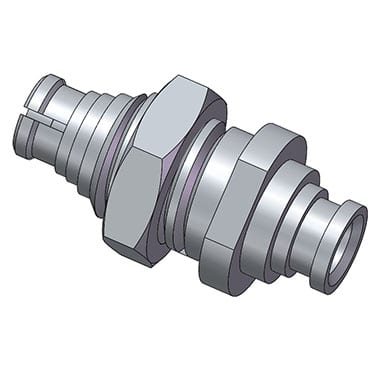

SMP Straight Female Bulkhead Solder For .086 Cable
Product Type:Connectors
Series:SMP
Series:SMP
Price:
Product Specifications
| Connector Series | SMP |
|---|---|
| Cable Type | AFLEX-086AF, HF086FEP(BK), AFLEX-086, HF086, HF086FEP, PLEX090, PLEX090DBK, RG405, SR086 |
| Termination Type | Coaxial |
| Gender | Female |
| Body Style | Straight |
| Attachment Method | Solder |
| Max. Frequency | 12.4 GHz |
| Mounting Feature | Bulkhead – Rear Mount |
| Connection Method | Standard |
| Compliance RoHS | Yes |
| Polarity | Standard |
| Impedance | 50 Ohm |
| Contact Material | Beryllium Copper Alloy |
| Contact Finish | Gold |
| Body Material | Brass |
| Body Finish | Gold |
| Dielectric Type | PTFE |
| Temperature | -40°C to +85°C |
