ANO 6511-2001

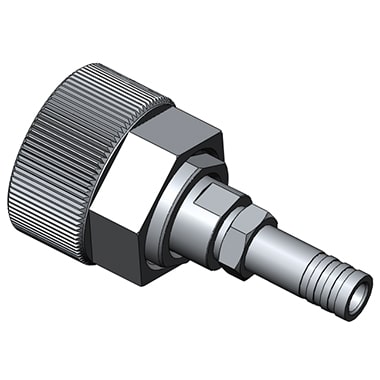

7mm Straight Solder for PLEX-140 Cable, Captivated Contact
Product Type:Connectors
Series:7mm

Price:

Product Specifications

Connector Series

7mm

Cable Type

PLEX140

Termination Type

Coaxial

Gender

Sexless

Body Style

Straight

Attachment Method

Solder

Max. Frequency

18 GHz

Connection Method

Screw-on

Compliance RoHS

Yes

Polarity

Standard

Impedance

50 Ohm

Contact Material

Beryllium Copper Alloy

Contact Finish

Gold

Body Material

Stainless Steel

Body Finish

Passivated

Dielectric Type

PEI

Coupling Nut Material

Stainless Steel

Coupling Nut Finish

Passivated

Temperature

-55°C to +70°C

VSWR

1.20 MAX.
