ANO 5312-3032

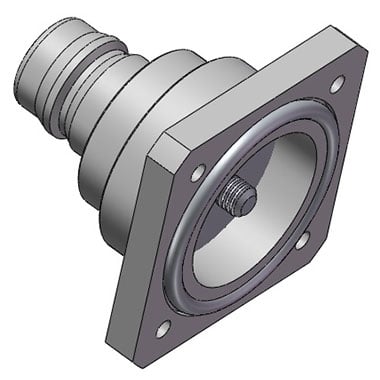

HPQN Straight Female 4 Hole 1 inch SQ. Flange Receptacle, Threaded Post
Product Type:Connectors
Series:HPQN

Price:

Product Specifications

Connector Series

HPQN

Termination Type

Terminal

Gender

Female

Body Style

Straight

Attachment Method

Solder

Max. Frequency

11 GHz

Mounting Feature

4 Hole Flange

Connection Method

Quick Lock

Terminal Contact Type

Pin

Compliance RoHS

Yes

Polarity

Standard

Impedance

50 Ohm

Contact Material

Phosphor Bronze

Contact Finish

Silver

Body Material

Brass

Body Finish

Albaloy

Dielectric Type

PTFE

Temperature

-55°C to +125°C

VSWR

1.20 MAX. AT DC-6 GHz
