ANO 2112-4285

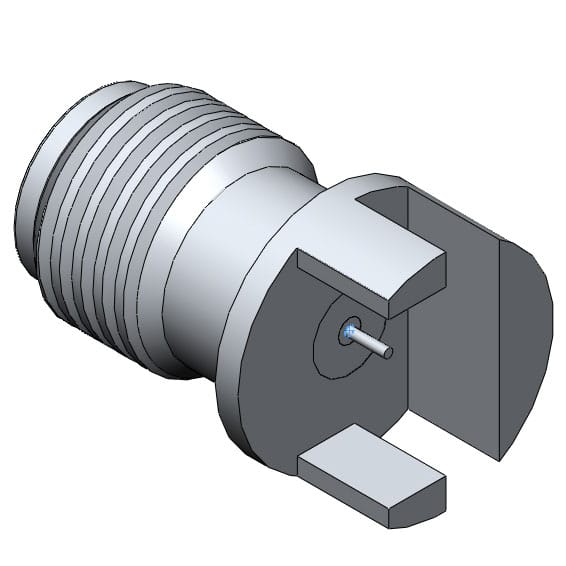

SMA Jack PCB Mount For .062'' Board
Product Type:Connectors
Series:SMA
Series:SMA
Price:
Product Specifications
| Connector Series | SMA |
|---|---|
| Termination Type | PCB |
| Gender | Female |
| Body Style | Straight |
| Attachment Method | Solder |
| Max. Frequency | 27 GHz |
| Connection Method | Screw-on |
| PCB Type | End Launch |
| Compliance RoHS | Yes |
| Polarity | Standard |
| Impedance | 50 Ohm |
| Contact Material | Beryllium Copper Alloy |
| Contact Finish | Gold |
| Body Material | Beryllium Copper Alloy |
| Body Finish | Gold |
| Dielectric Type | PTFE |
| Temperature | -55°C to +125°C |
| VSWR | 1.20 MAX. |
