ANO 5312-3012

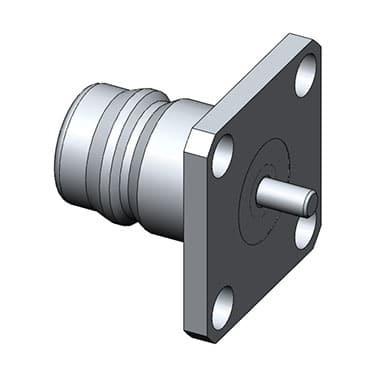

HPQN Female Receptacle, 4 Hole Square Flange, .500'' Hole Spacing
Product Type:コネクタ
Series:HPQN
Series:HPQN
Price:
製品仕様
| Connector Series | HPQN |
|---|---|
| Termination Type | Terminal |
| Gender | Female |
| Body Style | Straight |
| Attachment Method | Solder |
| Max. Frequency | 6 GHz |
| Mounting Feature | 4 Hole Flange |
| Connection Method | Quick Lock |
| Terminal Contact Type | Pin |
| Compliance RoHS | Yes |
| Polarity | Standard |
| Impedance | 50 Ohm |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Body Material | Brass |
| Body Finish | Albaloy |
| Dielectric Type | PTFE |
| Temperature | -55°C ～ +125°C |
