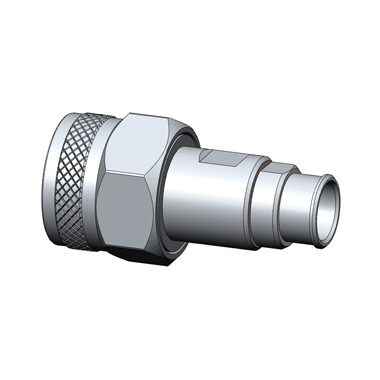

ANO 5111-2309
Price:
製品仕様
Connector Series | N-Type |
---|---|
Cable Type | PLEX310 |
Termination Type | Coaxial |
Gender | Male |
Body Style | Straight |
Attachment Method | Solder |
Max. Frequency | 18GHz |
Connection Method | Screw-on |
Compliance RoHS | Yes |
Polarity | Standard |
Impedance | 50 Ohm |
Contact Material | Brass |
Contact Finish | Gold |
Body Material | Stainless Steel |
Body Finish | Passivated |
Dielectric Type | PTFE |
Coupling Nut Material | Stainless Steel |
Coupling Nut Finish | Passivated |
Temperature | -55℃~+165℃ |
VSWR | 1.30 MAX. |
